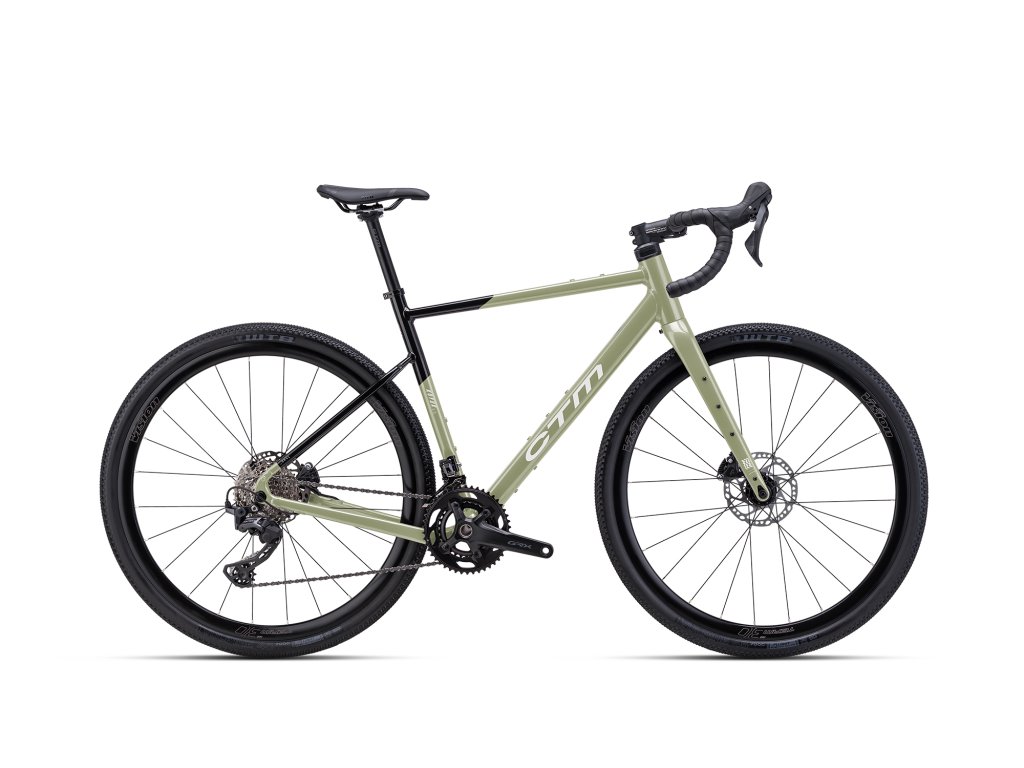

| Model | KOYUK 2.0 |
| Frame Type | CTM KOYUK / ALU 6061 DB-Lite / GAG / ICR / 12x142mm, UDH, FSA T47 BB for SMNΦ24 (max tire clearance 55mm) |
| Wheel Size | 700C |
| Fork | CTM Carbon GRVL (max tire clearance 52mm) tapered, internal routing, 12mm thru axle |
| Shifter | Shimano GRX / RX-610 12spd |
| Derailleur | Shimano GRX / RD-RX820 |
| Front Derailleur | Shimano GRX / FD-RX820 |
| Cassete | Shimano CSHG710 11-36T |
| Crankset | Shimano GRX / FC-RX610 46-30T |
| Breaks | Shimano GRX / BR-RX410 / SM-RT64 Rotor 160mm |
| Rims | wheelset VISION TEAM 30 i23 / 12x100mm/12x142mm, Tubeless Ready |
| Tyres | WTB Vulpine 700x45 TCS Light/Fast Rolling / Dual DNA SG |
| Chain | Shimano CN-HG6100 |
| Stem | FSA Omega / 80mm |
| Handlebars | FSA A-Wing |
| Headset | FSA NO.80/56/CR II Middle (integrated cable routing) |
| Saddle | WTB Solano 142x240mm |
| Seatpost | CTM Alloy 27.2mm |
| Speeds | 24 speed |
| Rok | 2026 |
| Head Tube Angle | 70.5 |
| Seat Tube Angle | 74 |
| Horizontal Top Tube | 531 |
| Seat Tube Length | 460 |
| Chainstay Lenght | 430 |
| Wheelbase | 1022 |
| Head Tube Length | 100 |
| BBDrop | -76 |
| Fork Length | 400 |
| Fork Offset | 55 |
| Reach | 380 |
| Front Center | 604 |
| Stack Height | 530 |
| Color | černá / světlá zlatá |
