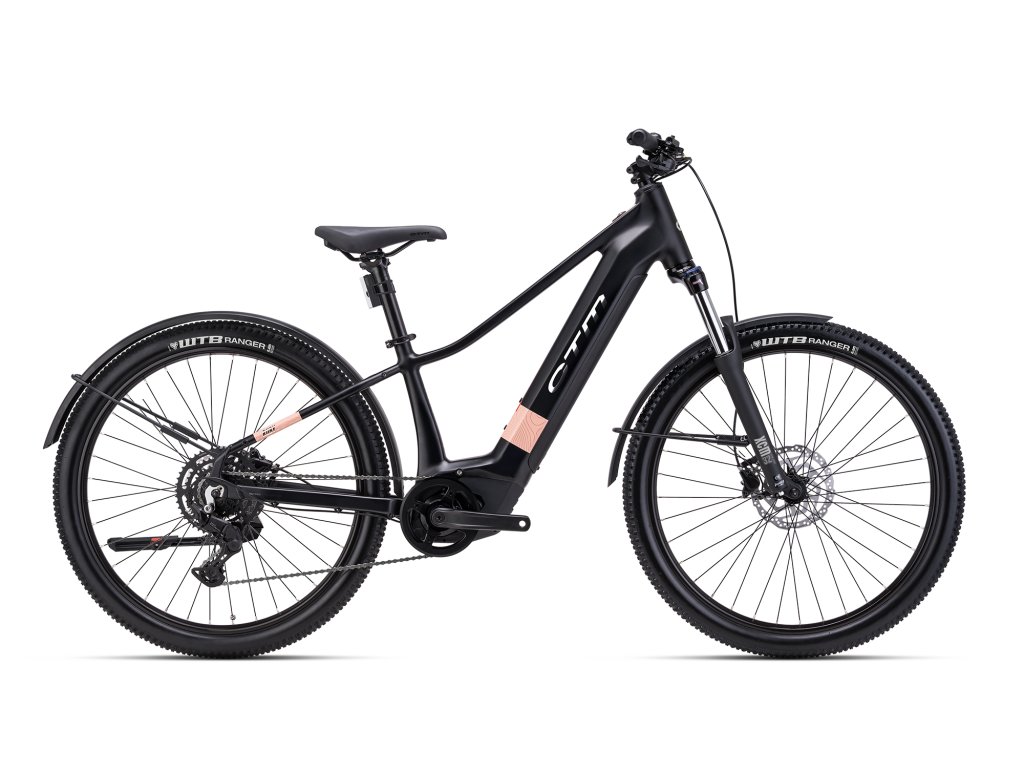

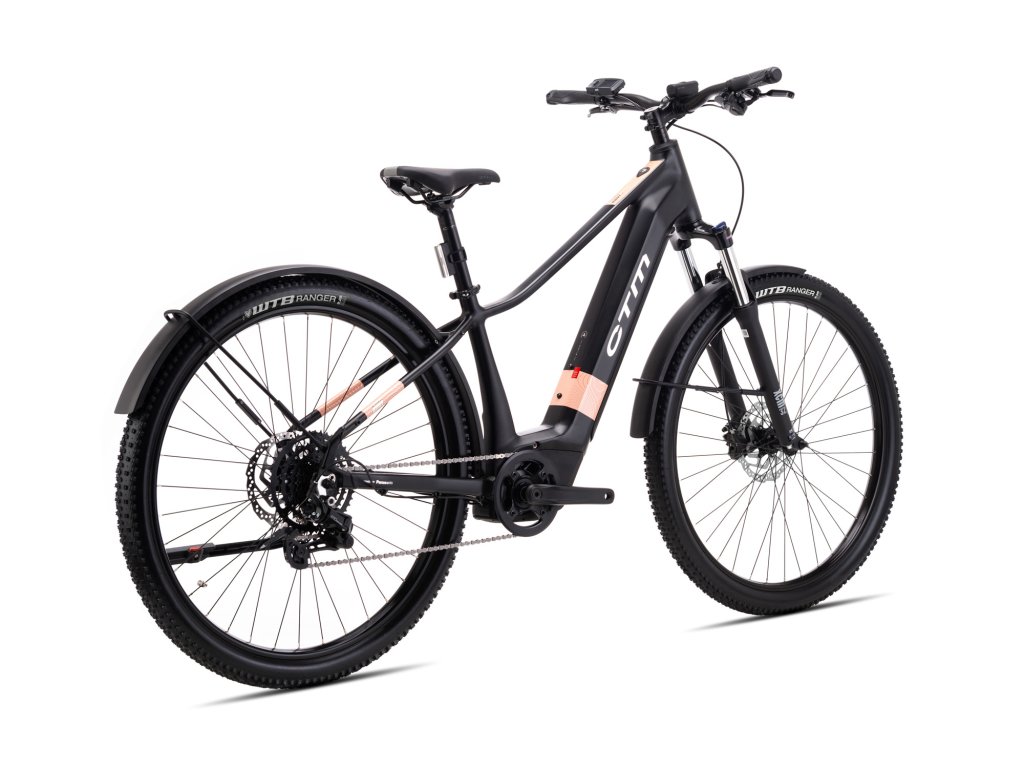

| Model | RUBY GX 27,5" E-Allroad |

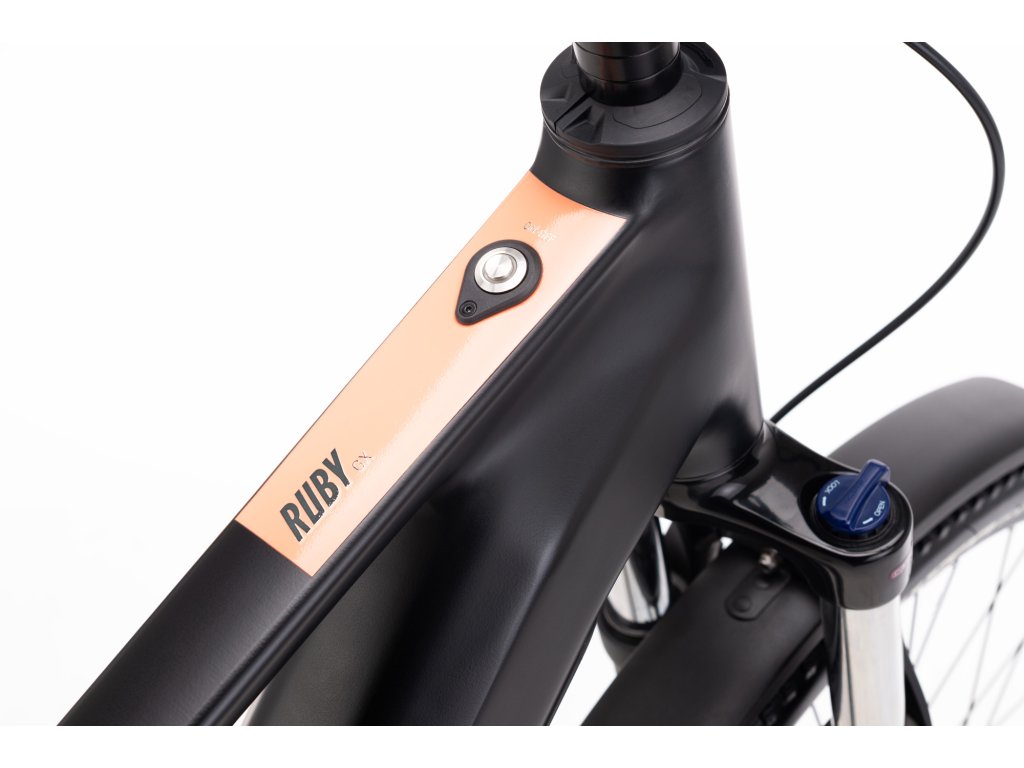

| Frame Type | ALU 6061, Easy Handling Geometry, Full Integrated Battery, ICR, Kickstand/Carrier/Fender Mounts, S, M |
| Wheel Size | 27,5 |
| Fork | Suntour XCM32 LO,DS, 27,5" 100mm |
| Shifter | Shimano CUES SL-U4000/9sp. |
| Derailleur | Shimano CUES RD-U4000 |
| Cassete | Shimano CUES CS-LG300/9sp. 11-46 |
| Crankset | Samox 38T, 170mm |
| Breaks | Shimano MT200 / SMRT10M |
| Rims | WTB ST i30 TCS 2.0 27,5" 32H |
| Tyres | WTB Ranger 27,5x 2.25" Comp |
| Hubs | Novatec D041DSB/D142TSE,32H ,CL |
| Pedals | VPE 537 |
| Chain | KMC XGLIDE |
| Stem | CTM 7140/45mm |
| Handlebars | CTM N04, 700/1" rise/31,8mm |
| Headset | FSA No.80/62 |
| Saddle | CTM Cloud WMN |
| Seatpost | CTM LCSP-53, 300/31,6 mm |
| Speeds | 9 speed |
| Engine | PANASONIC GX Power plus / 75Nm |
| Battery | LG 720 Wh / 36V / 20Ah |
| Rok | 2026 |
| Head Tube Angle | 67 |
| Seat Tube Angle | 74 |
| Horizontal Top Tube | 601 |
| Seat Tube Length | 370 |
| Chainstay Lenght | 460 |
| Wheelbase | 1187 |
| Head Tube Length | 160 |
| BBDrop | -45 |
| Fork Length | 540 |
| Fork Offset | 51 |
| Reach | 410 |
| Front Center | 730 |
| Stack Height | 0 |
| Color | matná černá |
