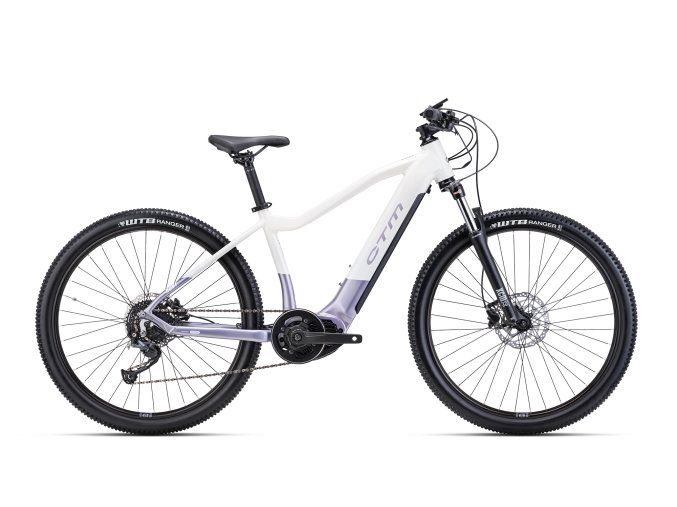

| Model | RUBY 27,5" |
| Frame Type | ALU 6061, S(14"), M (16"), L (18") |
| Wheel Size | 27,5 |
| Fork | Suntour XCM32 ATB, RL,DS, 100mm |
| Shifter | Shimano Altus SL-M2000RA 9 sp. |
| Derailleur | Shimano Altus RD-M2000SGS |
| Cassete | Shimano CSHG400/9sp. 11-36 |
| Crankset | Bafang 38T,170mm |
| Breaks | Shimano MT200 / SMRT10M |
| Rims | WTB ST i29 TCS 2.0 27,5" 36H |
| Tyres | WTB Ranger 27,5x 2.25" Comp |
| Hubs | Novatec D041DSB/D142TSE,36H ,CL |
| Pedals | VPE 537 |
| Chain | KMC X9e |
| Stem | CTM LCS/60mm |
| Handlebars | CTM rise bar, 700/31,8 mm |
| Headset | NECO H153 |
| Saddle | SR Vivo Ergo Lady |
| Seatpost | CTM 350x31,6 mm |
| Speeds | 9 speed |
| Engine | BAFANG M500 / 250W / 95Nm |
| Battery | CTM IGB 720Wh / 48V / 15Ah |
| Rok | 2024 |
| Head Tube Angle | 69 |
| Seat Tube Angle | 73 |
| Horizontal Top Tube | 583 |
| Seat Tube Length | 460 |
| Chainstay Lenght | 475 |
| Wheelbase | 1145 |
| Head Tube Length | 130 |
| BBDrop | -44 |
| Fork Length | 470 |
| Fork Offset | 46 |
| Reach | 415 |
| Front Center | 674 |
| Stack Height | 587 |
| Color | bílá perleť / světlofialová perleť |
