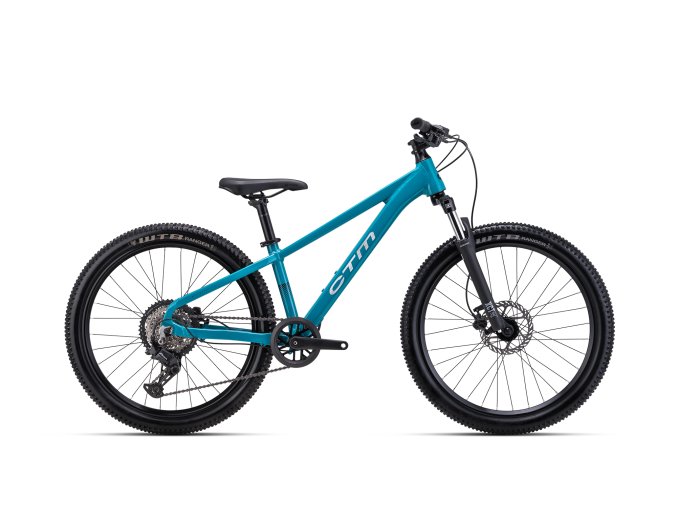

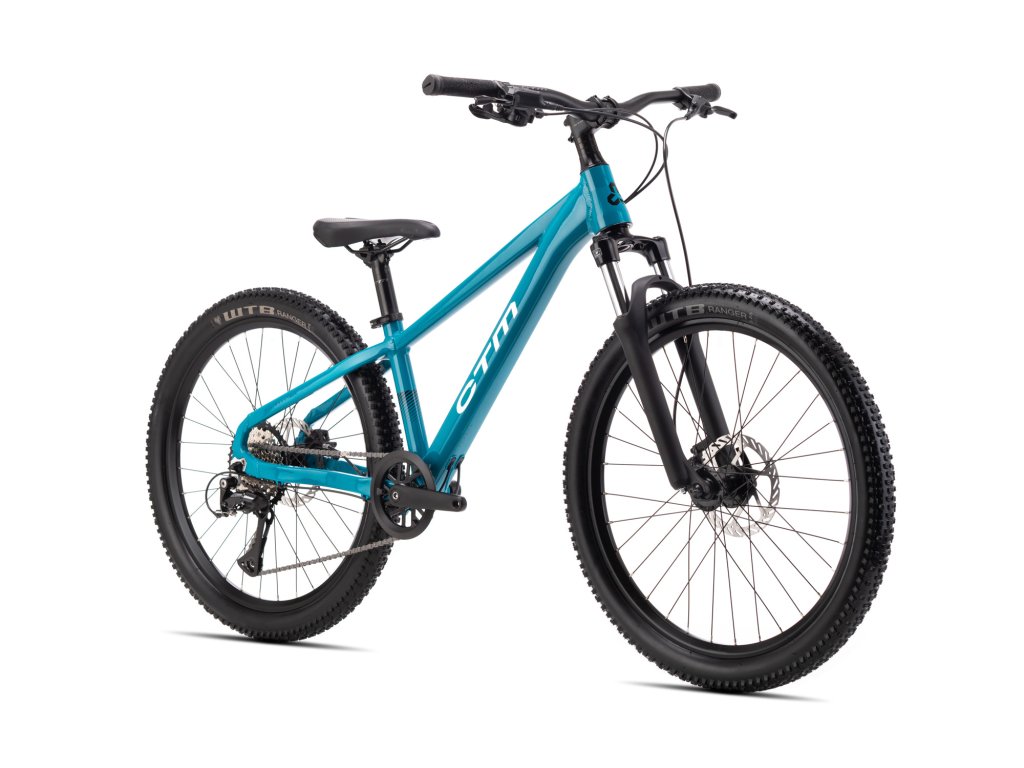

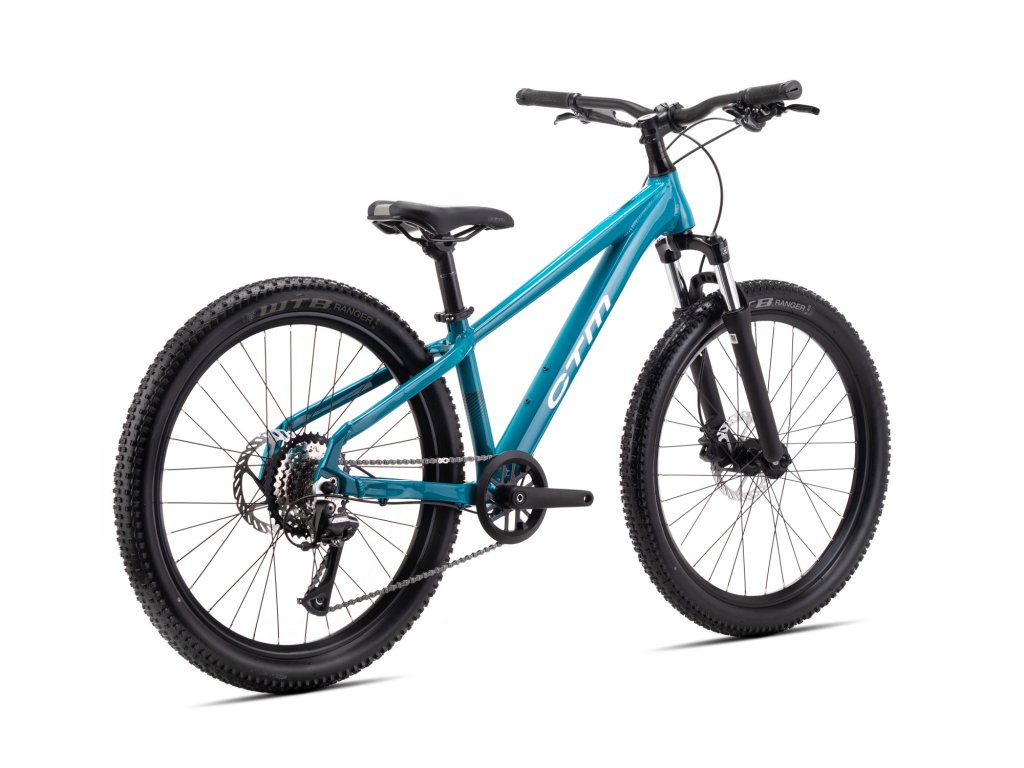

| Model | ZEPHYR JR |

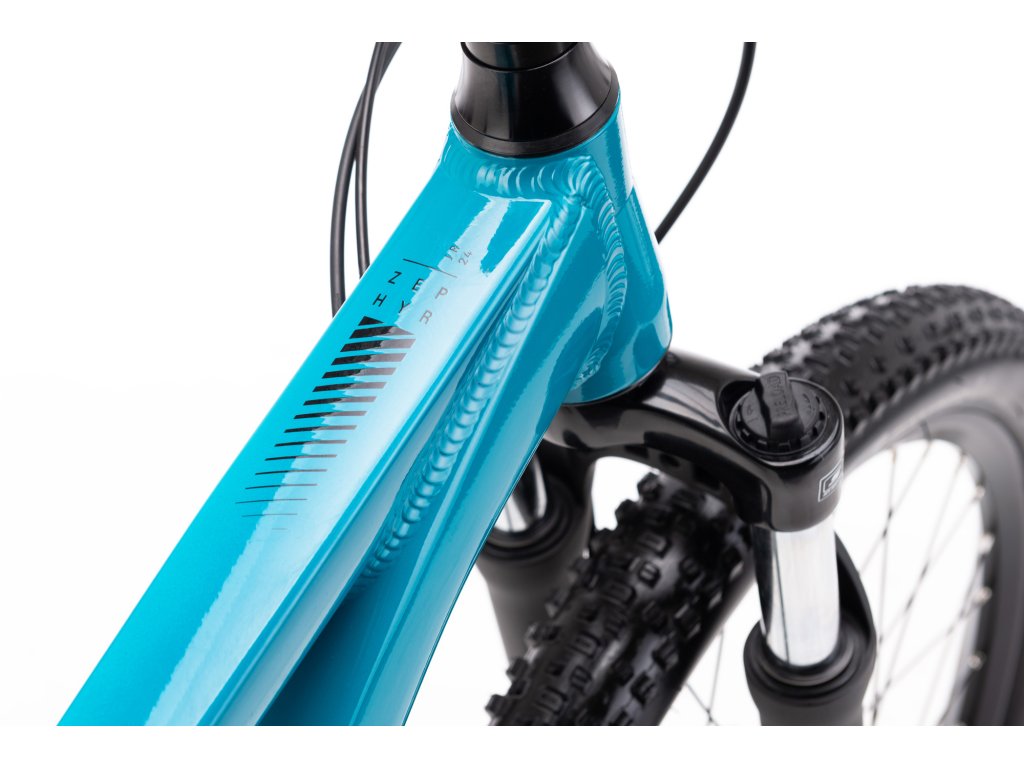

| Frame Type | ZEPHYR JR, AL 6061, 13" |
| Wheel Size | 24 |
| Fork | Suntour XCT-JR-L DS 80mm 24" |
| Shifter | Shimano Altus SL-M315/8 sp. |
| Derailleur | Shimano ESSA RD-U2000 |
| Cassete | Shimano CS-HG400/8, 11-45 |
| Crankset | Wheeltop, 32T, 140mm |
| Breaks | TEKTRO HD / 6-bolt 160mm |
| Rims | CTM GA18, 507X21, 32H |
| Tyres | WTB Ranger 24x2,25" |
| Hubs | CTM alloy 32H |
| Pedals | VPE 229 |
| Chain | KMC Z8.3 |
| Stem | CTM 7195 40/31,8 mm |
| Handlebars | CTM N04M, 680/1,5" rise/31,8mm |
| Headset | Neco H 156 |
| Saddle | CTM junior |
| Seatpost | CTM MPO 300/31,6 mm |
| Speeds | 8 speed |
| Rok | 2026 |
| Head Tube Angle | 67 |
| Seat Tube Angle | 73.5 |
| Horizontal Top Tube | 520 |
| Seat Tube Length | 303 |
| Chainstay Lenght | 375 |
| Wheelbase | 993 |
| Head Tube Length | 100 |
| BBDrop | 25 |
| Fork Length | 470 |
| Fork Offset | 42 |
| Reach | 356 |
| Front Center | 619.6 |
| Stack Height | 536 |
| Color | modrá |
